自动化生产口罩的缺陷检测离不开机器视觉检测技术

浏览量
  避免口罩生产过程中出现任何瑕疵或缺损,减少出错率,机器视觉检测系统完成口罩缺陷检测的最后一道程序,提高口罩产品的质量及生产速度。在此过程中,工业相机能准确且快速撷取最真实影像数据,搭配后端分析软体,能帮助生产线人员在最短时间内做出最有效率的判断,真正减少人工成本以及制程中口罩被污染的机率。
  The machine vision inspection system can complete the last procedure of mask defect detection and improve the quality and production speed of mask products. In this process, the industrial camera can accurately and quickly capture the most real image data. Combined with the back-end analysis software, it can help the production line personnel make the most efficient judgment in the shortest time, and truly reduce the labor cost and the probability of mask contamination in the process.
  口罩瑕疵检测筛选系统的检验流程:
  Inspection process of mask defect detection and screening system:
  1.中心运动系统:由电机、主轴、玻璃盘及相关配件组成,实现中心系统平稳地转动。
  Central motion system: it is composed of motor, spindle, glass plate and related accessories to realize the stable rotation of the central system.
  2.视觉检测系统:由6个相机及相应光源组成,分别实现对物料上表面、物料下表面及物料侧环面进行拍照。
  Visual inspection system: it is composed of 6 cameras and corresponding light sources, which can take pictures on the upper surface, lower surface and side ring surface of materials respectively.
  3.软件分析控制系统:相机取像后,通过主机软件分析,判定被检测物料的属性:合格品、不合格品、待检品三种。
  Software analysis control system: after the camera takes the image, through the host software analysis, determine the properties of the tested materials: qualified, unqualified and to be inspected.
  4.出料分检系统:软件判定物料的属性后,通过PLC电气控制系统,出料分检系统按照软件指标的属性,对物料进行良品、不良品、待检品进行分类出料。
  Material distribution and inspection system: after the software determines the properties of materials, through the PLC electrical control system, the system classifies and discharges the good products, defective products and products to be inspected according to the attributes of the software indicators.
  5.PLC电气控制系统:通过PLC搭配视觉检测软件,完成整套设备的控制动作。
  PLC electrical control system: complete the control action of the whole set of equipment through PLC with visual inspection software.

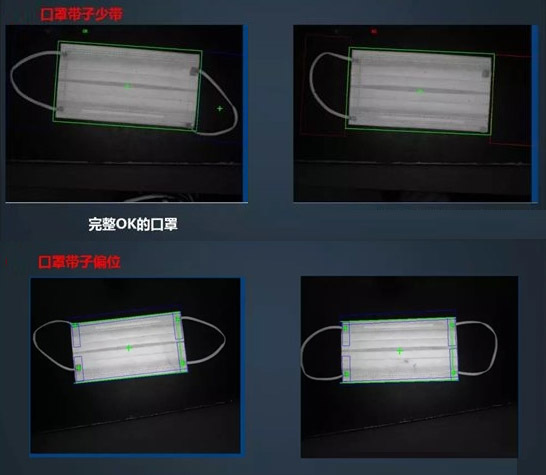

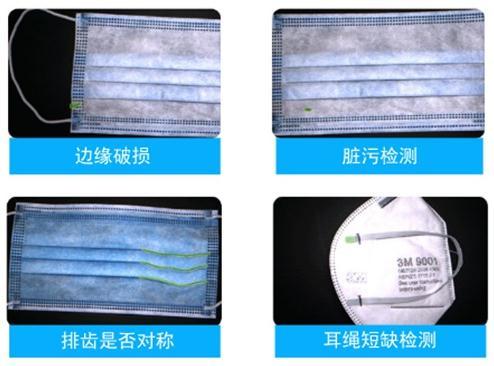

  口罩在生产过程中会出现耳绳脱落、排齿不对称、污渍、破损等缺陷,这些缺陷的出现严重影响口罩的质量,降低口罩的性能或无法使用。人眼目测很难对产品的质量进行精确、稳定地检测。机器视觉检测系统主要针对以下内容对口罩进行全方位的检测。
  In the production process, there will be ear rope falling off, asymmetric teeth arrangement, stains, damage and other defects, which seriously affect the quality of the mask, reduce the performance of the mask or can not be used. It is difficult to detect the quality of products accurately and stably by human eye measurement. The machine vision inspection system mainly aims at the following contents to carry on the omni-directional inspection to the mask.
  口罩切片后检测:
  After slicing, the mask was detected
  1、口罩长度、宽度等检测需求;
  The length and width of the mask should be tested;
  2、口罩切片大小;
  The size of the mask slice;
  3、折痕数量一致。
  The number of creases is the same.
  耳带焊接后检测:
  Inspection after welding of ear band:
  1、检测耳带长度;
  The length of ear band was measured;
  2、耳带焊接检测;
  Ear band welding inspection;
  3、包边长度检测。
  Detection of hemming length.
  口罩包装前检测:
  Inspection before mask packaging:
  1、产品种类识别;
  Product type identification;
  2、表面缺陷检测;
  Surface defect detection;
  3、表面生产批号识别;
  Identification of surface production batch number;
  4、产品颜色识别。
  Product color identification.
  口罩包装完成检测:
  Complete inspection of mask packaging:
  1、检测包装是否合格;
  Check whether the package is qualified;
  2、口罩数量计算。
  The number of masks was calculated.

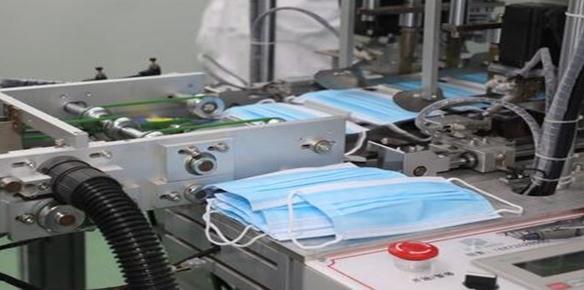

  视觉检测系统与自动化生产设备的有利结合,有效帮助口罩生产企业对于产品品质把关方面的检验。机器视觉检测系统提供高速、高准确性,且可长期且稳定地进行重复性工作,与人工检测相比,大量减少出错率,也避免人眼检测弹性疲乏的缺点,提升产品质量及生产速度。
  The combination of visual inspection system and automatic production equipment can effectively help mask manufacturers to check the quality of products. Machine vision inspection system provides high-speed, high accuracy, and long-term and stable repetitive work. Compared with manual detection, it can greatly reduce the error rate, avoid the weakness of human eye detection elasticity fatigue, and improve product quality and production speed.
