5分钟快速了解视觉检测系统有哪些作用?
发布时间:
2023-02-10 11:30
视觉检测系统的优势在于能够根据工程师设置好的程序进行运作,对检测物体进行相应的检测,并输出数据。
The advantage of visual detection system is that it can operate according to the program set by the engineer, detect the detected object and output the data.
视觉检测系统可以检测什么呢?
What can visual inspection system detect?
视觉检测系统又是如何工作的呢?
How does the visual inspection system work?
视觉检测系统有哪些作用呢?接下来红宝自动化小编降为您一一揭晓。
What is the function of visual inspection system? Next, the red treasure automation editor will be announced one by one for you.

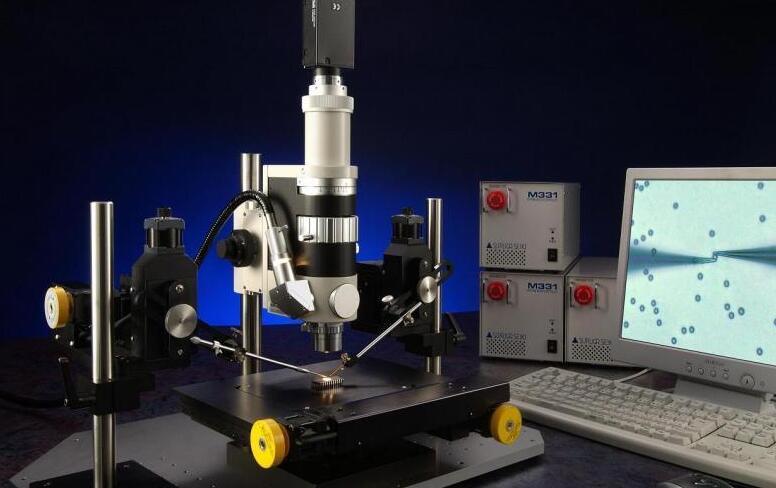

视觉检测是指通过CCD工业相机将摄取的对象转换为图像信号,并传输到专用图像处理系统,然后根据像素分布和亮度等信息将其转换为数字信号;图像系统执行各种操作以提取这些信号的目标特征,然后根据判别结果控制现场设备的操作,并进行视觉检测、尺寸测量、缺陷检测、识别和系统定位。
Visual detection refers to converting the object to image signal through CCD industrial camera, and transmitting it to special image processing system, then converting it to digital signal according to pixel distribution, brightness and other information; image system performs various operations to extract the target characteristics of these signals, and then controls the operation of field equipment according to the discrimination results, and carries out visual detection and dimension measurement Quantity, defect detection, identification and system positioning.
使用视觉检测设备代替人工检测,是当今工业智能制造的必然趋势。具体说来,机器视觉检测设备主要有以下几点作用:
It is an inevitable trend of industrial intelligent manufacturing to use visual inspection equipment instead of artificial inspection. Specifically, machine vision inspection equipment mainly has the following functions:
1、使用视觉检测设备进行生产可以适应工业发展趋势;
1. The use of visual inspection equipment for production can adapt to the industrial development trend;
2、随着人工成本的增加,从长远来看,使用机器视觉检测设备将有助于公司减少不必要的支出;
2. With the increase of labor cost, in the long run, the use of machine vision detection equipment will help the company reduce unnecessary expenditure;
3、因为采用了非接触式测量方法,所以不会对观察者和被观察者造成损害。这样可以有效减少检测过程中对产品的可能损坏;
3. Because of the non-contact measurement method, it will not cause damage to the observer and the observed. This can effectively reduce the possible damage to the product in the detection process;
4、因视觉检测设备具有较宽的光谱响应范围,因此机器视觉检测设备检测的可视觉范围更广,并且检测精度更高。例如,人眼不可见的红外测量被用于扩大人眼的可视范围,并且其检测精度更高;
4. Because of the wide spectral response range of vision detection equipment, the machine vision detection equipment has a wider visual range and higher detection accuracy. For example, the invisible infrared measurement is used to expand the visible range of the human eye, and its detection accuracy is higher;
5、用于产品外观缺陷检测;
5. Used for product appearance defect detection;
6、用于工装定位、移位,组装和码垛机器人等;
6. Used for tooling positioning, shifting, assembling and stacking robots, etc;
7、用于生物识别(如面部、语音、指纹、虹膜等),目标识别(车牌识别、射频识别等),条形码识别(一维码、二维码),字符识别,纹理识别等;
7. For biometrics (such as face, voice, fingerprint, iris, etc.), target recognition (license plate recognition, RFID, etc.), barcode recognition (one-dimensional code, two-dimensional code), character recognition, texture recognition, etc;
8、主要用于测量。如几何尺寸测量(长度、宽度、高度、周长、面积、体积等),圆或椭圆(圆心、半径、轮廓、角度、大小等)。注意,在测量前首先要校准,这涉及到相机校准。
8. Mainly used for measurement. Such as geometric measurement (length, width, height, perimeter, area, volume, etc.), circle or ellipse (center, radius, outline, angle, size, etc.). Note that calibration is the first step before measurement, which involves camera calibration.
根据以上的综合分析不难看出:视觉检测系统是企业升级为智能化制造企业的捷径,视觉检测系统的智能化操作不仅能够为企业节约雇佣人工的成本,更能有效的提高生产效率,给企业创造更高的利润。
According to the above comprehensive analysis, it is not difficult to see that the visual inspection system is a shortcut for an enterprise to upgrade to an intelligent manufacturing enterprise. The intelligent operation of the visual inspection system can not only save the cost of employing labor for the enterprise, but also effectively improve the production efficiency and create higher profits for the enterprise.
山东红宝自动化有限公司专注服务于:自动化流水线、视觉检测系统、智能车库、机器人、医疗设备、数控机床、航空航天等领域,致力于为广大企业提供更新更好的优质产品及服务。
Shandong Hongbao Automation Co., Ltd. focuses on the following fields: automatic assembly line, visual inspection system, intelligent garage, robot, medical equipment, CNC machine tools, aerospace, etc., and is committed to providing enterprises with updated and better quality products and services.
