机器视觉检测技术中较大的突出亮点有哪些

浏览量

  机器视觉检测系统技术中较大的亮点就是可以检测各类产品的外观缺陷,通常像一些纺织品、薄膜、工业制造以及生物制造等行业都能够进行缺陷检测,尤其可以通过机器视觉检测设备检测出产品的划伤、划痕、辊印、凹坑、粗糙、断经、断纬、粗节、粗经、纬档、松边、起球、污迹、孔洞等一系列缺陷。
  The highlight of machine vision inspection technology is that it can detect the appearance defects of all kinds of products. Generally, some industries such as textile, film, industrial manufacturing and biological manufacturing can carry out defect detection, especially the scratch, scratch, roll print, pit, roughness, broken warp, weft, coarse pitch, coarse warp, weft stop, loose edge, etc A series of defects such as pilling, stains, holes, etc.

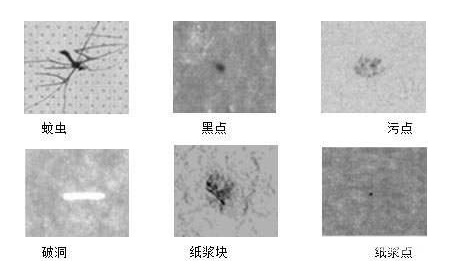

  纸张表面缺陷检测系统采用机器视觉技术检测纸张在生产线中出现的孔洞、蚊虫、黑斑、褶皱、斑迹、亮斑、破损等严重影响纸张表面的瑕疵。
  The paper surface defect detection system uses machine vision technology to detect the holes, mosquitoes, black spots, wrinkles, spots, bright spots, damage and other defects that seriously affect the paper surface in the production line.
  纸张表面缺陷检测系统实现对纸张生产在线进行实时的表面缺陷检测。
  The paper surface defect detection system realizes real-time surface defect detection on paper production line.

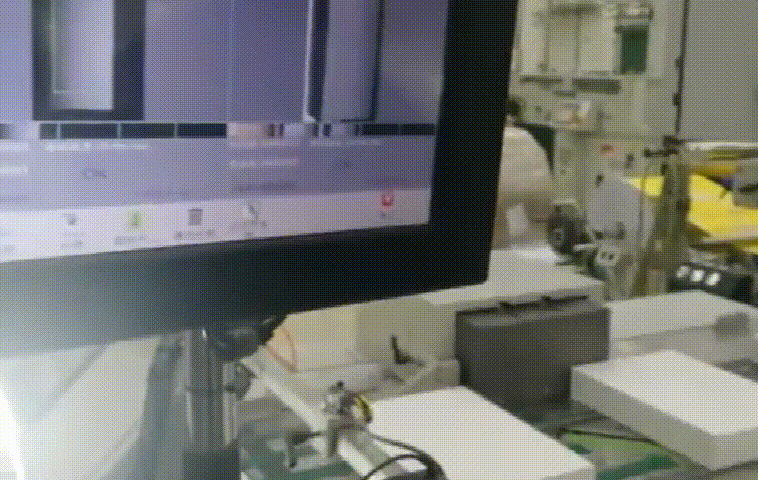

  红宝纸张表面缺陷视觉检测系统采用进口高性能CCD线阵相机采集产品表面图像,通过高速图像数据处理技术,实现对纸张缺陷进行分类、定位、输出报警、显示缺陷图像等。
  Hongbao paper surface defect visual inspection system uses imported high-performance CCD linear array camera to collect product surface image. Through high-speed image data processing technology, it can classify, locate, output alarm and display defect image.
  特别是特种纸、药用包装纸以及食品包装纸近几年对产品质量要求日益严格,再加上高速运行的生产线很难通过人眼直接进行检测,越来越多的造纸企业开始重视纸张生产过程中质量问题的控制,引进一套纸张表面缺陷检测系统可以有效帮助企业提高生产效率、提升产品质量。
  In particular, special paper, pharmaceutical packaging paper and food packaging paper have increasingly strict requirements on product quality in recent years. In addition, it is difficult for high-speed production lines to detect directly through human eyes. More and more paper enterprises begin to pay attention to the control of quality problems in the paper production process. The introduction of a set of paper surface defect detection system can effectively help enterprises improve production efficiency and improve production efficiency Improve product quality.

纸张视觉检测技术


  纸张表面缺陷检测参数如下:
  The paper surface defect detection parameters are as follows:
  检测对象:食品包装纸、特种纸、医药包装纸、淋膜纸、新闻纸等
  Test object: food packaging paper, special paper, pharmaceutical packaging paper, coated paper, newsprint, etc
  检测幅宽:任意幅宽(根据产品幅宽定制)
  Test width: any width (customized according to product width)
  检测速度:MAX:1500m/min
  Detection speed: Max: 1500m / min
  缺陷类型:蚊虫、孔洞、黑点、线条、褶皱、压痕、浆块等纸张加工过程中的常见的表面缺陷
  Defect type: mosquito, hole, black spot, line, fold, indentation, pulp block and other common surface defects in paper processing
  检测精度:0.1mm*0.1mm
  Detection accuracy: 0.1 mm * 0.1 mm
  测宽精度:无横向偏移时误差小于等于3mm
  Width measurement accuracy: the error is less than or equal to 3mm without lateral offset
  检测方式:正/反面检测,可根据企业客户产品特点选择1工位或者多工位。
  Detection method: positive / negative detection, 1 station or multi station can be selected according to product characteristics of enterprise customers.
  缺陷标识:自动报警、在系统软件界面记录缺陷的具体信息
  Defect identification: automatic alarm, recording the specific information of defects in the system software interface
  历史记录:记录宽度、缺陷大小、面积、横纵向位置等信息
  History record: record the width, defect size, area, horizontal and vertical position, etc




  通过安装纸张表面缺陷检测系统可以客观对纸张进行质量控制,杜绝次品流向客户;及时对生产中产生的质量问题进行在线反馈,分析缺陷成因,可以让厂商调整生产线,改进生产工艺,降低次品率。
  Through the installation of the paper surface defect detection system, we can objectively control the quality of paper and prevent the flow of defective products to customers; we can timely feed back the quality problems generated in the production process, analyze the causes of defects, and let the manufacturers adjust the production line, improve the production process, and reduce the rate of defective products.
  基于工业机器视觉检测系统技术原理的工业表面瑕疵检测系统能够在线、高速扫描每个产品,形成高分辨率的片材图像,进行实时的图像处理,准确捕捉各种表面缺陷,并实现报警、报表统计、质量分析和分拣等处理,有效提高缺陷检测准确率,同时防止伪缺陷带来的干扰。
  Based on the technical principle of industrial visual inspection system, the industrial surface defect detection system can scan each product online and at high speed, form high-resolution sheet image, carry out real-time image processing, accurately capture various surface defects, and realize alarm, report statistics, quality analysis and sorting processing, effectively improve the accuracy of defect detection, and prevent false defects Interference.
