一个小视频告诉你自动开箱机的工作原理

浏览量
  开箱机是自动化包装生产线流程的第一个环节,开箱机能够将原来扁平的纸箱吸合成纸箱的形状,并将纸箱的底部进行封合,同时开箱机还具有传动装置,将开好的纸箱传送至自动化包装生产线的下一个包装环节。
  The open box machine is the first link in the process of the automatic packaging production line. The box opener can absorb the original flat carton into the shape of the carton, and seal the bottom of the carton. At the same time, the box opener also has a transmission device to transfer the opened carton to the next packaging link of the automatic packaging production line.
  全自动开纸箱机视频:
开箱机
  一:吸合环节
  1: Pull in link

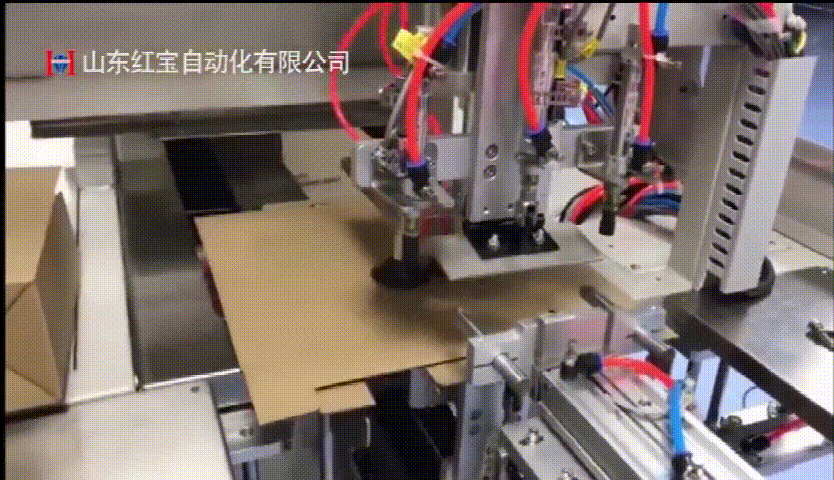

  开箱机工作的第一个步骤便是吸合环节,当用户将制作好的扁平纸箱放入料斗之后,开箱机会利用自己的吸盘将料斗中的纸箱吸住,当吸合住的同时会有一个向后拉的力,这个力的作用就是将扁平的纸箱吸开成纸箱的步骤。
  The first step of the unpacking machine is the suction link. After the user puts the flat carton into the hopper, the unpacking machine will use its own suction cup to suck the carton in the hopper. When the box is closed, there will be a pull back force. The function of this force is to open the flat carton into a carton.
  二:折底
  2: Folding bottom
  当开箱机第一步工作完成之后,纸箱已经基本成型,需要进行的是折合下底的工作,这个步骤与折盖封箱机的折盖原理类似,设备会将纸箱下底的两个短边先进行折合,折合长边,这样整个折底的工作就全部结束了。
  When the first step of the unpacking machine is completed, the carton has been basically formed, and what needs to be done is to fold the bottom. This step is similar to the folding principle of the folding and sealing machine. The equipment will first fold the two short sides of the bottom of the carton and fold the long side, so that the whole folding work is finished.
  三:封底
  3: Back cover
  相对于前两步工作,开箱机封底这个工作就显得很简单了,它的原理与标准型封箱机的原理相同,由封箱皮带驱动带动纸箱向前行进,在行进的过程中,设备将纸箱的下底用封箱胶带封合好,输送到下一工作区域。
  Compared with the previous two steps, the back sealing of the box opener is very simple. Its principle is the same as that of the standard sealing machine. The carton is driven forward by the sealing belt. In the process of moving, the equipment seals the bottom of the carton with the sealing tape and delivers it to the next working area.
  自动开箱机的分类:
  Classification of automatic unpacking machine:
  立式箱机:速度12箱/分钟。KB-40,中速18框/分钟。KB-40H18
  Vertical box machine: speed 12 cases / min. Kb-40, medium speed 18 frames / min. KB-40H18
  卧式箱机:速度25箱/分钟。KB-40H25,高速40盒/分钟。KB-40H40
  Horizontal box machine: speed 25 cases / min. Kb-40h25, high speed 40 boxes / min. KB-40H40
  开箱机的整个工作流程,看似很简单,但要实现起来,需要设备的各个环节都紧密的配合,开箱尺寸范围、开箱速度、封底效果、机器稳定性能都必须达到指定的技术要求才能实现自动化开箱功能。
  The whole working process of the unpacking machine seems very simple, but to achieve it, it needs the close cooperation of all parts of the equipment. The size range, opening speed, sealing effect and machine stability must meet the specified technical requirements in order to realize the automatic unpacking function.
  根据红宝自动多年的实践经验发现,凡是引进自动开箱机的企业,自动化流水线设备的包装效率都至少提高了20%,甚至有的企业能够提高至60%,这也是开箱机被广泛应用于食品、医药、日用化工、乳制品、饮料、电子等诸多领域的原因。
  According to the practical experience of Hongbao automation for many years, it is found that the packaging efficiency of automatic assembly line equipment has been increased by at least 20% in any enterprise that introduces automatic unpacking machine, and even can be increased to 60% in some enterprises. This is also the reason why the unpacking machine is widely used in food, medicine, daily chemical industry, dairy products, beverage, electronics and many other fields.
